Dok-Guardian® HD and HDXL Safety Barriers

Heavy-duty fall-off defense
Stop up to 30,000 lbs.
Retractable and highly visible

Benefits

What stands between your people and the dock drop-off?

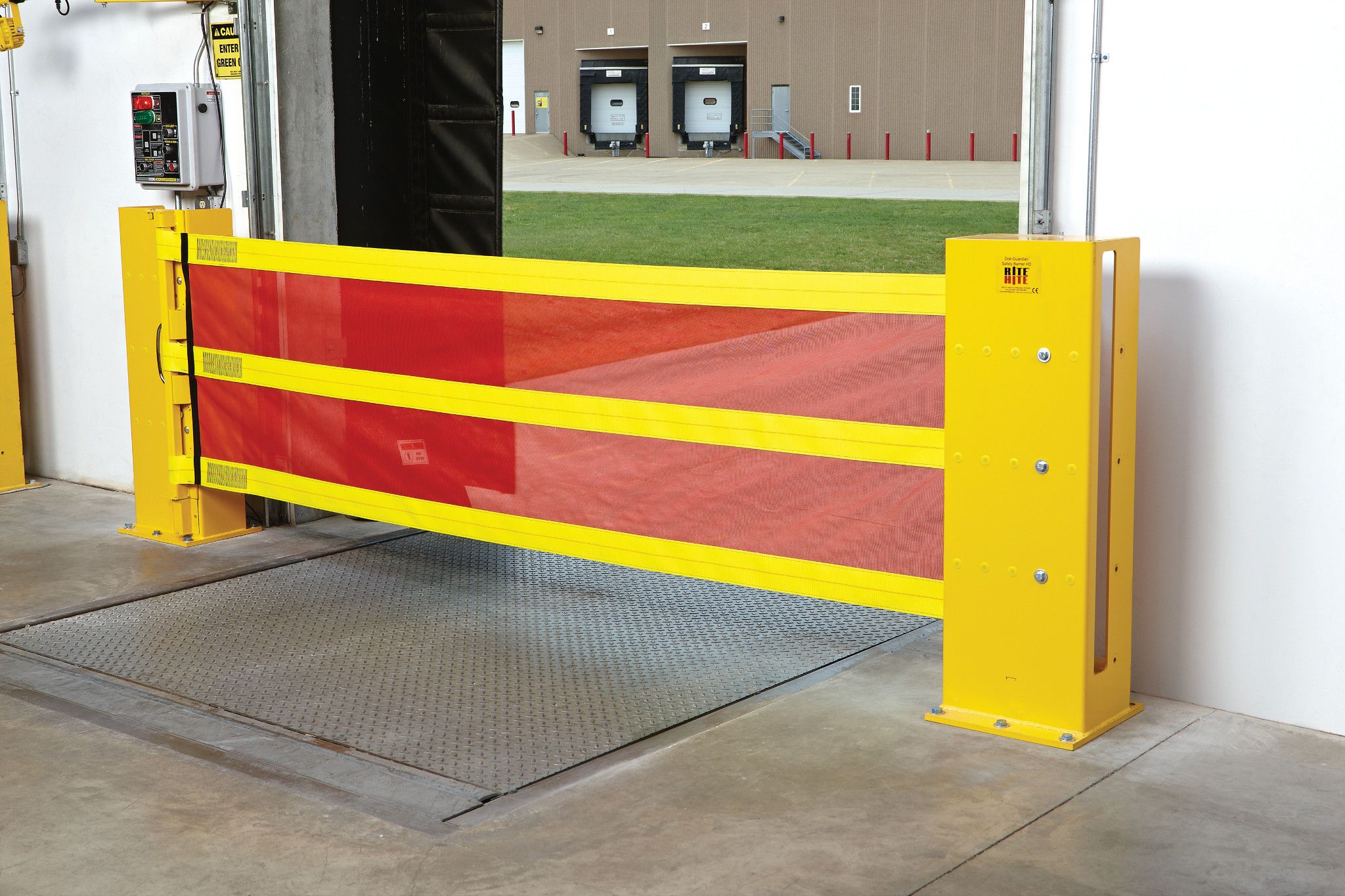

The Dok-Guardian HD and HDXL are heavy-duty, retractable dock barriers that help protect the loading dock drop-off.

Dok-Guardian LD Application: Loading Dock
  • Clear warning: Make sure operators and pedestrians know of potential fall-off danger.
  • Fall protection: Help prevent heavy-duty material handling equipment and pedestrians from falling off the loading dock.
  • Total dock safety: Easy integration with Rite-Hite's Dok-Lok® Vehicle Restraint and other equipment to enhance your overall loading dock safety solution.
  • Fresh air: Protect personnel while allowing outside air into the facility when no trucks are present.

What value do you put on fall prevention at your loading dock?

The manually operated Dok-Guardian HD and HDXL stretch across the dangerous loading dock edge, helping protect heavy-duty material handling equipment and pedestrians.

  • Interlock: Integrates with Rite-Hite's Dok-Lok® Vehicle Restraint and other equipment to create a safe sequence of operations.
  • High visibility: Helps prevent accidents before they happen with a bright safety-yellow curtain that stands out in busy environments.
  • Added protection: The Dok-Guardian HDXL model is taller to help facilities meet requirements under OSHA's 1910.29 Walking Working Surfaces standard.



Additional Rite-Hite® Barrier Solutions

For light-duty fall protection at the loading dock:

For an ergonomic, powered loading dock safety gate:

For overhead door track protection:

Is your loading dock safety solution designed for impact?

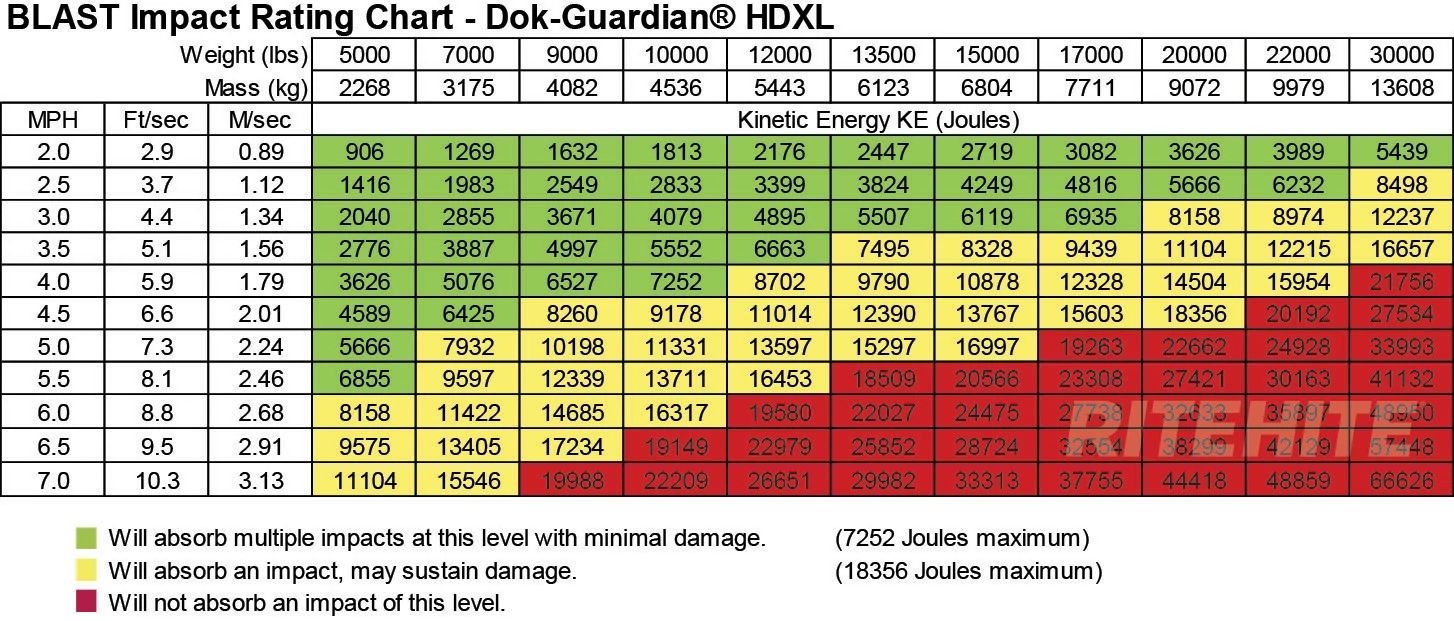

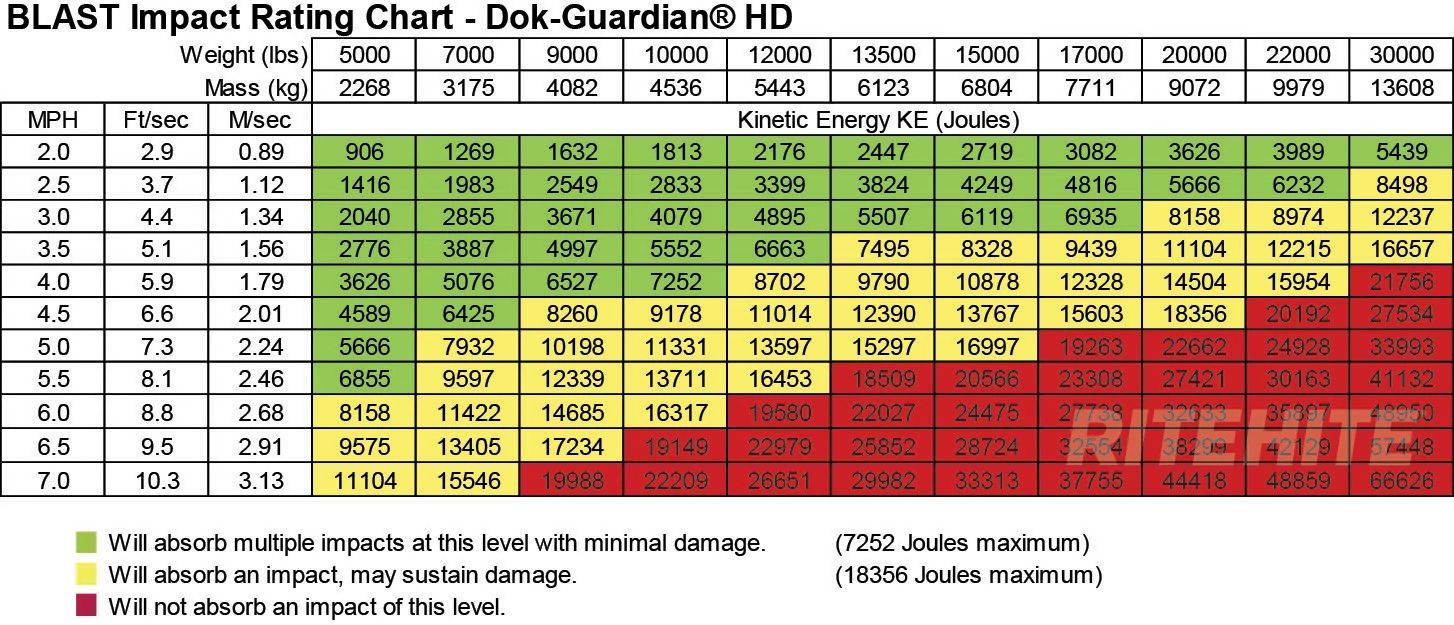

Each heavy-duty Dok-Guardian model can withstand collisions of up to 30,000 lbs. to help prevent motorized and non-motorized material handling vehicles from falling off the dock. Consult the Dok-Guardian HD and HDXL BLAST Impact Rating Charts for complete weight and speed ratings.

Product Specifications:

  • The HD is a 44″ high, bright red, PVC-coated fiberglass curtain with three bright yellow, heavy-duty restraint straps that easily fits across openings up to 16’5” wide
  • The OSHA-compliant HDXL is a 58″ tall, bright red, PVC-coated fiberglass mesh curtain that fits across 12′5″ openings with four horizontal yellow, heavy-duty restraint straps and three black vertical straps
  • The HDXL comes with a secondary ergonomic assist handle, providing support when securing and retracting the curtain
  • Two Wardens serve to anchor and store the retractable curtain and, additionally, give you excellent door track protection while loading and unloading trailers
GuardRite Dok-Gate - BLAST Impact Rating 8 ft

GuardRite Dok-Gate - BLAST Impact Rating 10 ft

Will these barriers help improve safety at your facility?

Dok-Guardian HD and HDXL Safety Barriers are often the right choice where protection from heavy-duty material handling vehicles is necessary.



Many industries or types of facility will benefit from this solution.

Think the Dok-Guardian HD or HDXL Safety Barrier is right for your specific need? Contact our facility experts to schedule a free consultation.
