Dok-Guardian® LD and LDXL Safety Barriers

Light-duty drop-off protection
Stop up to 5,500 lbs.
Retractable and highly visible

Benefits

What do you have in place to guard your loading dock's drop-off?

The Dok-Guardian LD and LDXL are light-duty, retractable dock safety barriers that help protect the loading dock drop-off.

Protect your employees and equipment with the Dok-Guardian Safety Barrier from Rite-Hite
  • Clear warning: Unmistakable signal to operators and pedestrians of loading dock edge danger.
  • Fall protection: Help prevent carts, pedestrians and non-motorized lift trucks from falling off the loading dock.
  • Total dock safety: Easy integration with Rite-Hite's Dok-Lok® Vehicle Restraint and other equipment to enhance your overall loading dock safety solution.
  • Fresh air: Protect personnel while allowing outside air into the facility when no trucks are present.

Does your loading dock safety system protect workers at the drop-off?

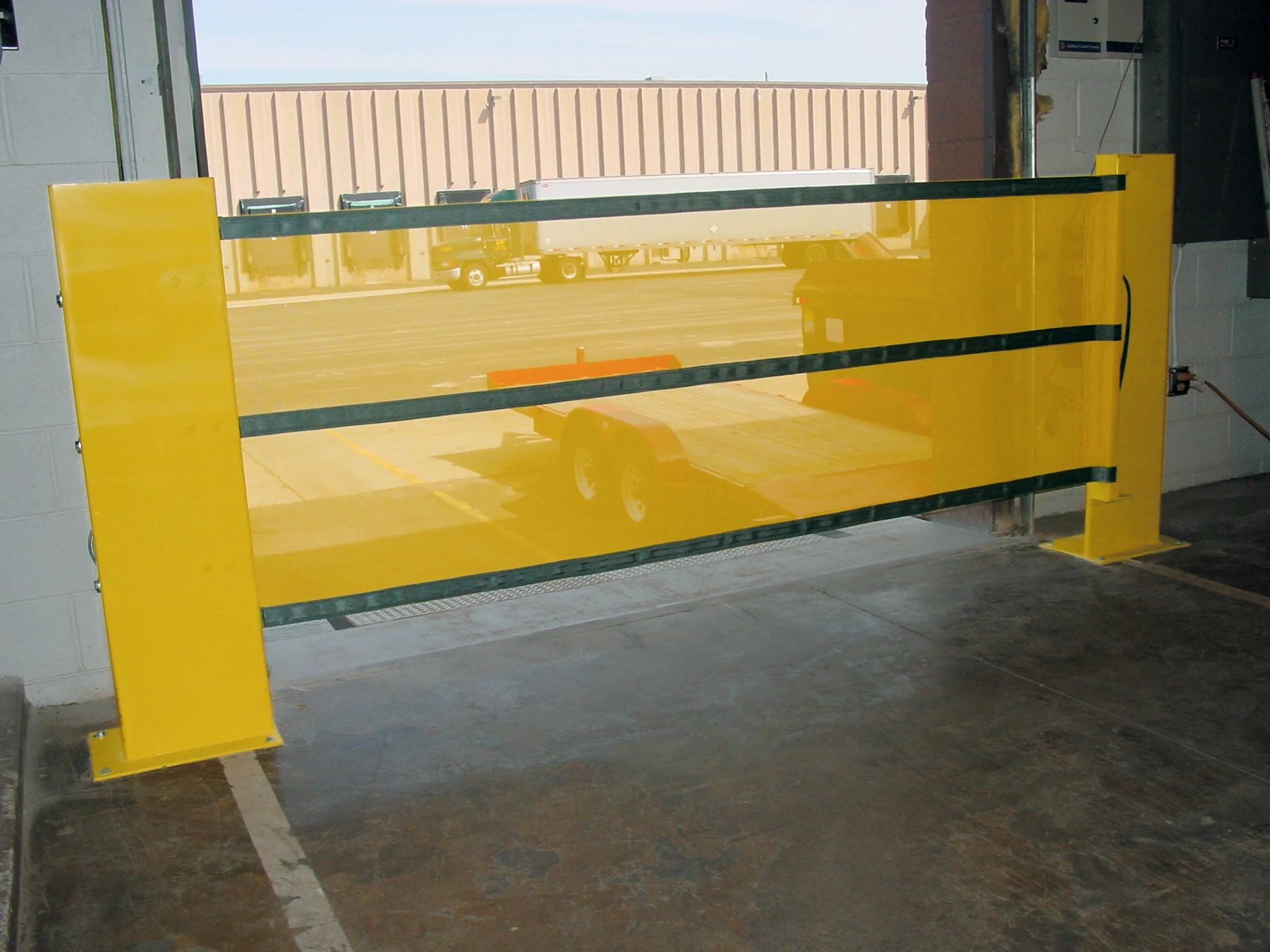

Stretching across the dangerous dock edge, the manually operated Dok-Guardian LD and LDXL is a simple solution that helps prevent carts, pedestrians and non-motorized lift trucks from falling off the loading dock.

  • Interlock: Dok-Guardian LD and LDXL can be interlocked with other loading dock equipment to create a safe sequence of operations.
  • High visibility: The bright safety-yellow curtain stands out in busy environments, alerting operators to the potential of a fall-off accident.
  • Added protection: The Dok-Guardian LDXL model is taller to help facilities meet requirements under OSHA's 1910.29 Walking Working Surfaces standard.



Additional Rite-Hite® Barrier Solutions

For heavy-duty fall protection at the loading dock:

For an ergonomic, powered loading dock safety gate:

For overhead door track protection:

Is your loading dock safety barrier built for reliable, lasting protection?

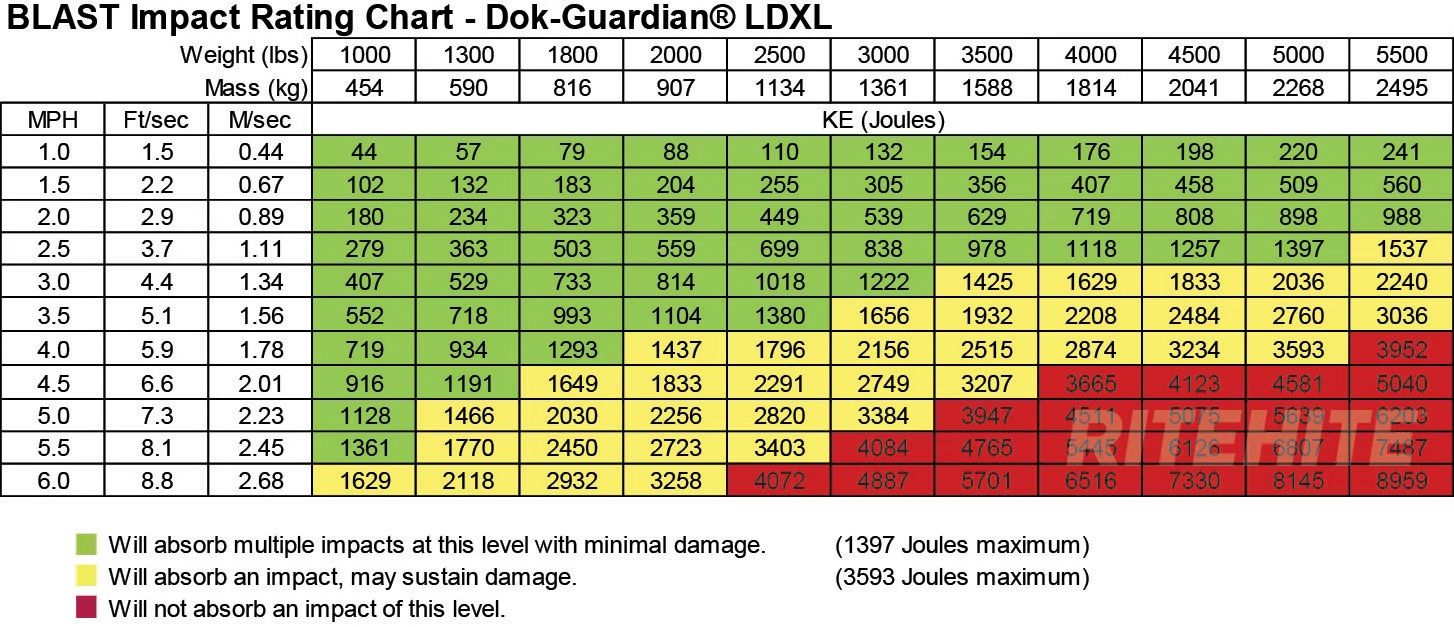

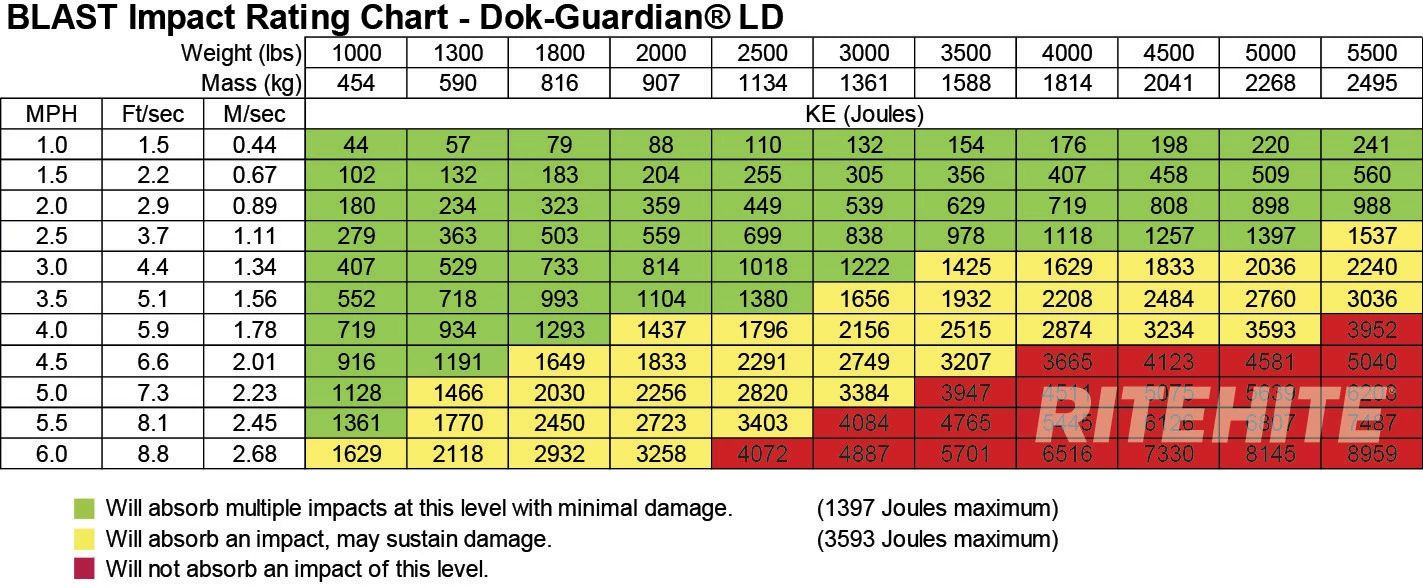

Both light-duty Dok-Guardian models are designed to stop up to 5,500 lbs., helping prevent non-motorized material handling vehicles from falling off the dock. Consult the Dok-Guardian LD and LDXL BLAST Impact Rating Charts for complete weight and speed ratings.

Product Specifications:

  • The LD is a 44″ high PVC-coated fiberglass curtain with black restraining straps that easily fits across openings up to 14'5" wide
  • The OHSA-compliant LDXL is a 58" tall PVC-coated fiberglass mesh curtain that fits across 10'5" openings with horizontal yellow restraint straps and black vertical straps
  • Two Wardens serve to anchor and store the retractable curtain and, additionally, give you excellent door track protection while loading and unloading trailers
    • GuardRite Dok-Gate - BLAST Impact Rating 8 ft

      GuardRite Dok-Gate - BLAST Impact Rating 10 ft

Will these barriers help improve safety at your facility?

Dok-Guardian LD and LDXL Safety Barriers are often the right choice where loading dock drop-off protection for lighter duty material handling vehicles is necessary.



Many industries or types of facility will benefit from this solution.

Think the Dok-Guardian LD or LDXL Safety Barrier is right for your specific need? Contact our facility experts to schedule a free consultation.
