Dok-Guardian® HD and HDXL Safety Barriers

Heavy-duty fall-off defense
Stop up to 30,000 lbs.
Retractable and highly visible

Benefits

What stands between your people and the dock drop-off?

The Dok-Guardian HD and HDXL are heavy-duty, retractable dock barriers that help protect the loading dock drop-off.

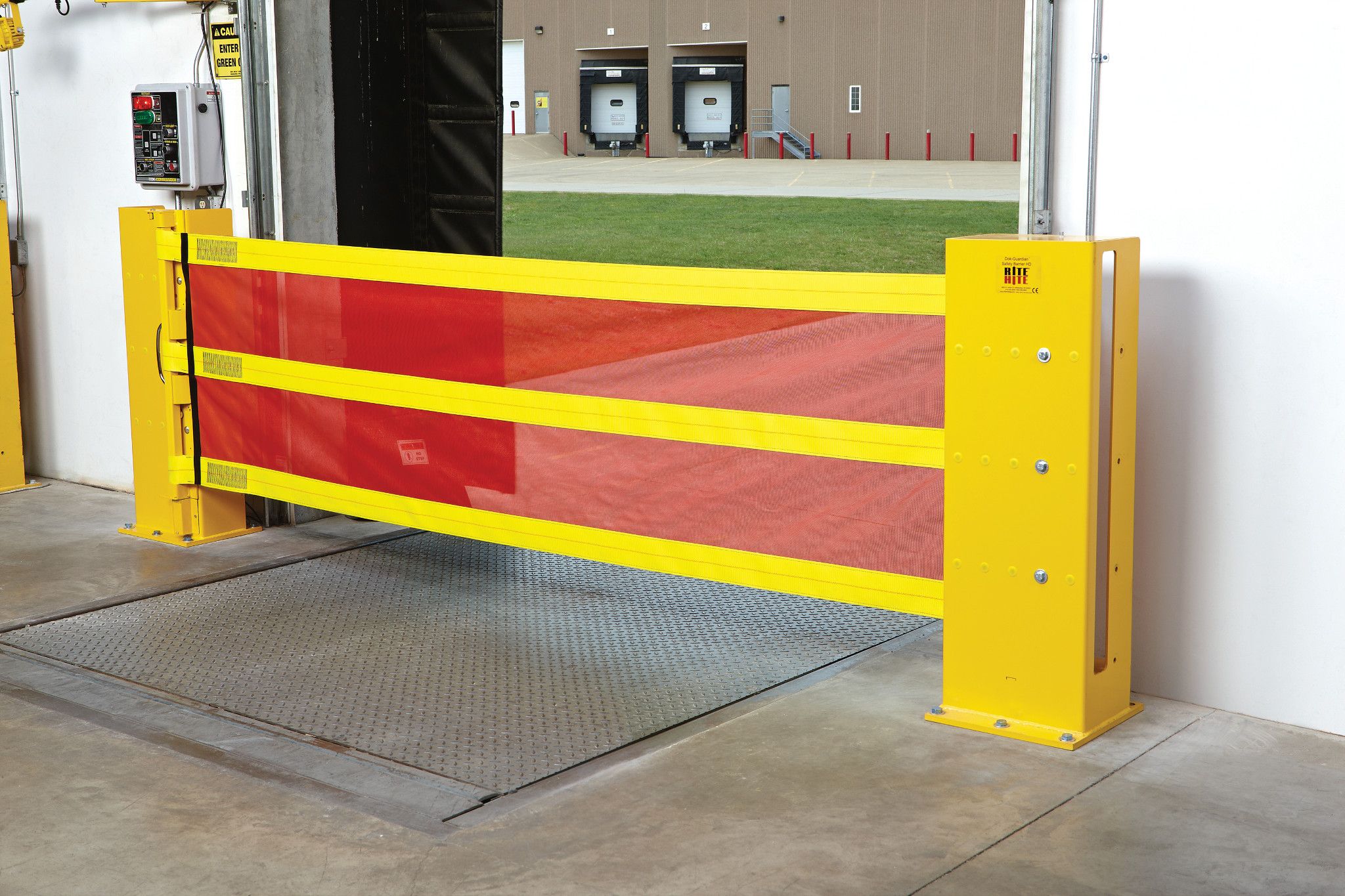

GuardRite Dok-Gate - Closed
  • Clear warning: Make sure operators and pedestrians know of potential fall-off danger.
  • Fall protection: Help prevent heavy-duty material handling equipment and pedestrians from falling off the loading dock.
  • Total dock safety: Easy integration with Rite-Hite's Dok-Lok® and other equipment to enhance your overall loading dock safety solution.
  • Fresh air: Protect personnel while allowing outside air into the facility when no trucks are present.

What value do you put on fall-prevention at your loading dock?

The manually operated Dok-Guardian HD and HDXL stretch across the dangerous loading dock edge, helping protect heavy-duty material handling equipment and pedestrians.

  • Interlock: Integrates with Rite-Hite's Dok-Lok® and other equipment to create a safe sequence of operations.
  • High visibility: Help prevent accidents before they happen with a bright safety-yellow curtain that stands out in busy environments.
  • Added protection: The Dok-Guardian HDXL model is taller to help facilities meet requirements under OSHA's 1910.29 Walking Working Surfaces standard.



Additional Rite-Hite® Barrier Solutions

For light-duty fall protection at the loading dock:

For an ergonomic, powered loading dock safety gate:

For overhead door protection:

Is your loading dock safety solution designed for impact?

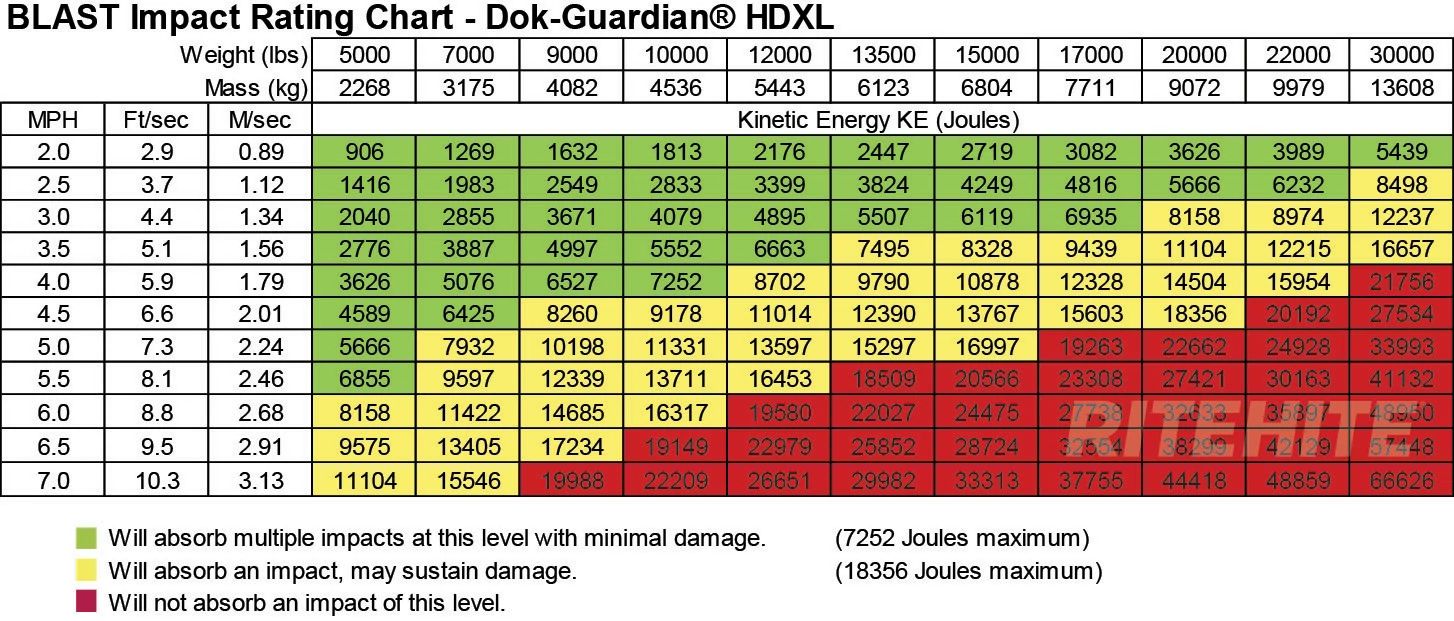

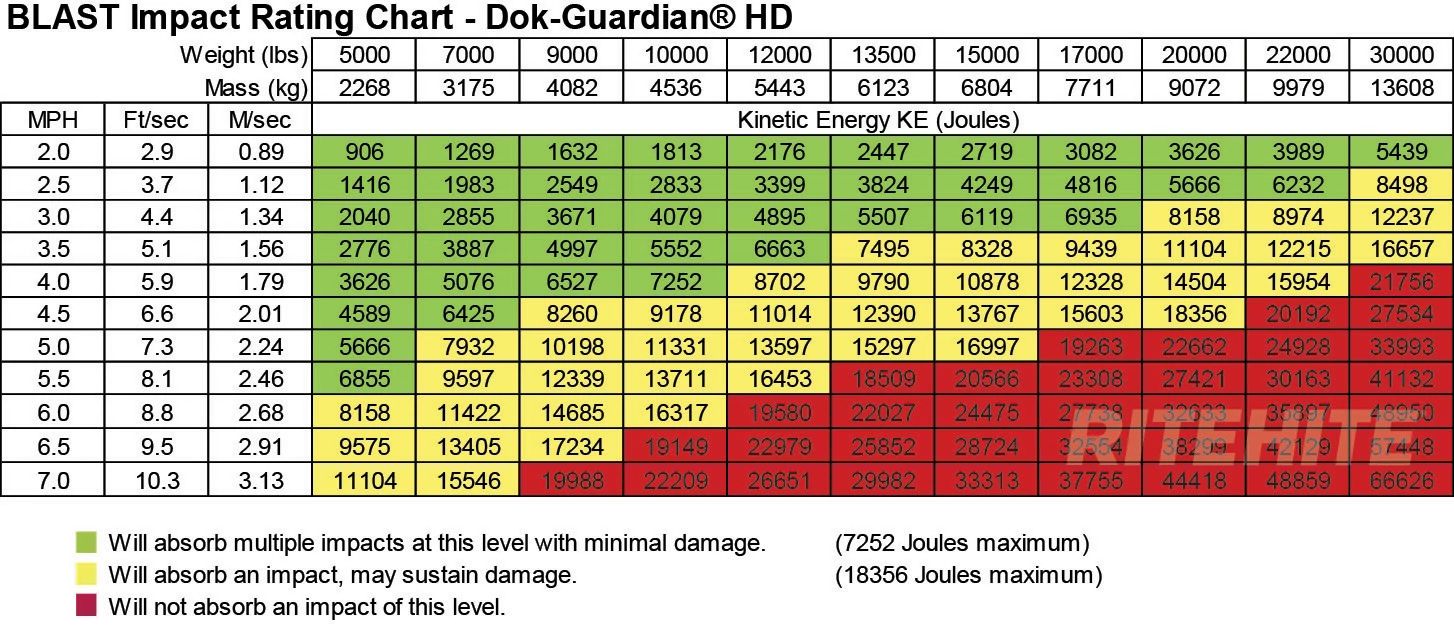

Each heavy-duty Dok-Guardian model can withstand collisions of up to 30,000 lbs. to help prevent motorized and non-motorized material handling vehicles from falling off the dock. Consult the Dok-Guardian HD and HDXL BLAST Impact Rating Charts for complete weight and speed ratings.

Product Specifications:

  • The HD is a 44″ high bright red PVC-coated fiberglass curtain with three bright yellow heavy-duty restraint straps that easily fits across openings up to 16’5” wide
  • The OSHA-compliant HDXL is 58″ tall bright red PVC-coated fiberglass mesh curtain that fits across 12′5″ openings with four horizontal yellow heavy-duty restraint straps and three black vertical straps
  • The HDXL comes with a secondary ergonomic assist handle, providing support when securing and retracting the curtain
  • Two Wardens serve to anchor and store the retractable curtain and, additionally, give you excellent door track protection while loading and unloading trailers

Will these barriers help improve safety at your facility?

Dok-Guardian HD and HDXL Safety Barriers are often the right choice where protection from heavy-duty material handling vehicles is necessary.

Many industries or types of facility will benefit from this solution.

Think the Dok-Guardian HD or HDXL Safety Barrier is right for your specific need? Contact our facility experts to schedule a free consultation at your facility.
