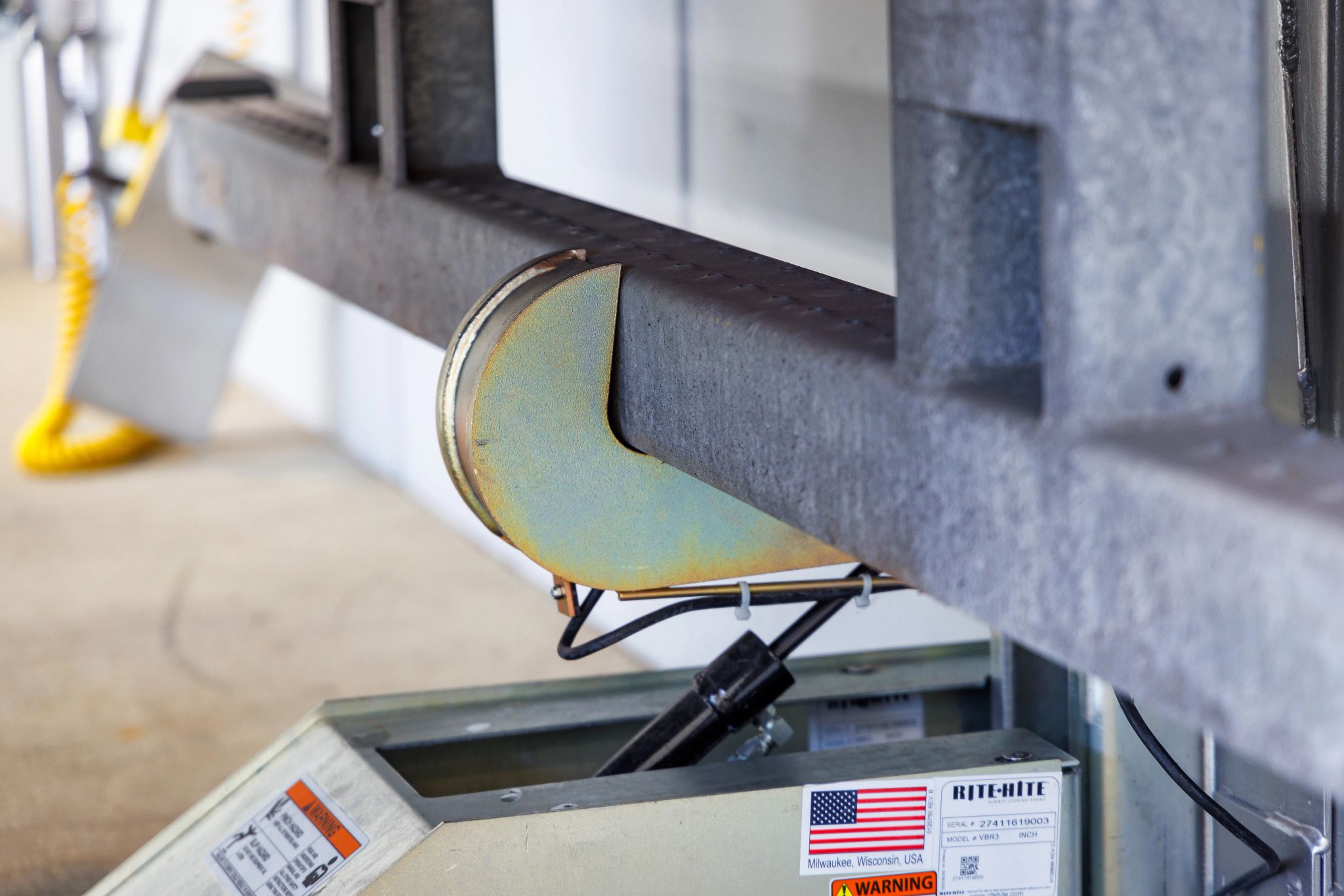

VBR-300 Ground Stored Restraint

Constant contact & float with RIG during loading
Economic manual & automatic light package options available
Exclusive magnetic-resistive switch for constant engagement communication

Benefits

  • Exclusive Barrier Design – 4.25” high barrier with reverse taper design provides the highest and widest coverage on RIGs.
  • Positive Engagement Notification – Truck presence bar is depressed upon positive engagement with RIG signaling safe engagement to inside dock attendants. Exclusive mag res switch will not come out of adjustment, helping ensure proper engagement communication.
  • Integrity of InstallationCompleted dock survey required for each dock position to help ensure safe and proper application of all Dok-Loks. Critical to the safety of material handlers and equipment utilizing the equipment, the surveys are reviewed by expert Applications team if outside of standard dock configuration.
  • Pull-Out Force Benchmarks – Rite-Hite was the first loading dock equipment manufacturer to establish pull-out force benchmarks based on years of research and development. Followed today by many other manufacturers, VBR-300 is installed with mounting force in excess of 100,000 lbs. and 32,000 lbs. of pull-out force, doubling what tractors can achieve when in first gear.
  • Withstand Harsh Loading Dock Environment – Zinc-plated for all weather durability.
  • Automatic Re-fire technology – Available on automatic ground stored and under leveler models to combat if vertical barrier loses contact with RIG.
  • Communication and ControlDok-Lok® Style Light Communication and Auto-Light Package (ALP) options communicate via interior lights when trailer is properly engaged, thus safe for material handlers to enter. Without any Rite-Vu™ Hazard Recognition and Control options, toggle-style Automatic Light Package cannot facilitate future equipment integration. Approach-Vu™ visual and audible warning for pedestrians is available as standalone or embedded in the housing of the VBR-300. The system is activated by the presence of a backing vehicle in the drive approach, indicating the need for pedestrians to safely vacate due to a looming threat.
  • Help Prevent Trailer Separation Accidents – VBR-300 helps to prevent early departure and trailer creep during live or dropped loading. For dropped trailers, a trailer stand can assist in helping prevent landing gear collapse and trailer upending.
  • Certified to meet and exceed ANSI MH30.3 performance testing standards.

Rite-Hite Communication and Control allows facilities to:

  • Integrate additional/future equipment and interlocked sequence of operations with Dok-Lok® Style Light Communication System.
  • Incorporate line of sight light communication system status with Corner-Vu™ and Leveler-Vu™.
  • Extend Blue Light Policy to help prevent 80,000 annual forklift-pedestrian accidents by extending reaction time with Pedestrian-Vu™.
  • Help prevent 2nd leading cause of backover fatalities in the United States with Approach-Vu™, which utilizes a light and horn system to present a clear visual and audible warning to pedestrians in the drive approach when a backing vehicle is detected.
  • Verify Dok-Lok engagement and trailer stand presence via outside camera and inside monitor with Lok-Vu™, reducing the amount of processes on the dangerous drive approach.
  • Integrate multiple loading dock control components at each dock position for a total dock safety system with Dok-Commander® Combined Controls.

All components are available as standalone or incorporated with Dok-Lok Style Light Communication System. The Dok-Lok Style Light Communication System offers more flexibility, facilitating the greatest long-term yield per dock position. The system allows facilities to address their most urgent safety needs first but reserving the opportunity to integrate vehicle restraints and other safety solutions at a fraction of the cost compared to standalone equipment purchases.

Loading Dock Productivity Analytics

  • Monitor real-time loading dock status. Optional Dok-Lok Dock Timer digitally displays total engagement time at each position to help dock attendants prioritize loads and avoid costly detention and demurrage charges.
  • Leverage loading dock analytics with current and historical Dok-Lok efficiency and utilization data to identify areas of operational improvement through robust reporting and intuitive dashboards.
  • Receive trending productivity alerts and review correct actions / next steps.

Loading Dock Safety Analytics

  • Study and understand safety challenges, frequency trends and root cause with diagnostic analytics to proactively influence employee behavior.
  • Interactive Safety Assessment Tool helps place priority on specific safety events.
  • 12-Month Limited Money-Back Guarantee of Customer Satisfaction
  • Standard Warranty includes 1 year parts / 1 year labor
  • Rite-Hite® Extended Warranty includes 2 year parts / 2 year labor and smart, connected capabilities for automatic (VBR-300)
  • Rite-Hite® Extended Warranty includes 2 year parts / 1 year labor and smart, connected capabilities for manual (VBR300MNL and VBR300ALP)
