Safe-T-Pit®

Dual sensors immediately disables leveler operation if motion is detected in pit
Helps prevent pedestrian crushing hazards
Anti-debris design and sensor placement for easy pit cleaning

Benefits

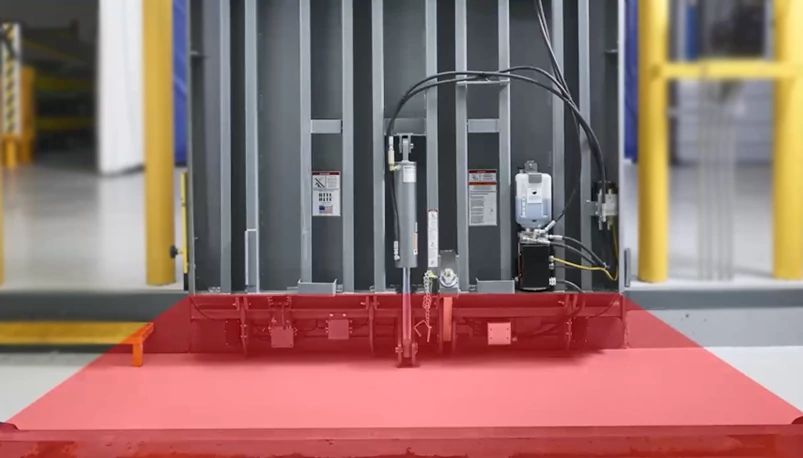

  • Dual Motion Sensors - Mounted on pit wall, to the right and left of the dock leveler. Each sensor scans the pit with a field that is the width of the leveler (plus an inch on each side) by ~6 ft. in front of the leveler. Sensors are active until the leveler platform is lowered to ~45 degrees.
  • Safe Sequence of Operation - Safe-T-Pit is integrated into the vertical leveler combination controls to help prevent the leveler raising or lowering when motion is detected in the pit.
  • Automatic Deactivation - Leveler operation is disabled upon motion detection, restored to upright position, and leveler controls are suspended for 5 seconds until after the pit is cleared.
  • “Fail Safe” Wiring - If one or both sensors are disconnected in anyway (loose wire, unplugged, severed cord, etc.) the vertical storing leveler is inoperable.
  • Access Brace - Standard on all continuous pit applications, adding an additional layer of pedestrian safety.
  • Durable Design - Built to meet IP66 and NEMA 4 rating standards, Safe-T-Pit can withstand harsh environments, such as in cold storage facilities, and most wash down applications.
  • Tapered Sensor Enclosure - Anti-debris design and sensor placement for easy pit access and cleaning.
  • Upgrade or Retrofit - Sensors can be added after installation on most vertical dock leveler control options.
  • Ease of Installation - Sensors come fully assembled, only requiring wiring and bolting to dock leveler pit wall.

Rite-Hite warranties are backed by an exclusive network of representatives and industry leading planned maintenance programs, helping to ensure that products perform to their full potential.

  • 5-year parts
  • 1-year labor and travel
  • 12-Month Limited Money-Back Guarantee of Customer Satisfaction
